This page describes the settings for Auto Wi-Fi Spot Check-in.

For an overview of Auto Wi-Fi Spot Check-in, please refer to "Auto Wi-Fi Spot Check-in".



Spots to register Wi-Fi information

The spots to register Wi-Fi are assumed to be office buildings or floors, not seats.

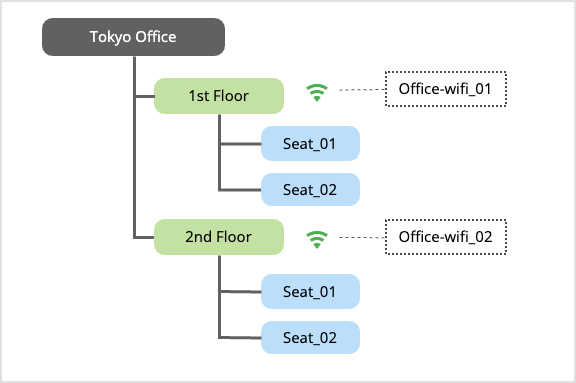

Using the following spot hierarchical structure as an example, the image is to register "Office-wifi_01" and "Office-wifi_02", which are Wi-Fi information for the 1st floor and 2nd floor.



Even if Wi-Fi information is not set for each seat, if Wi-Fi information has already been set for the floor that is the parent spot of the seats, you will be automatically checked in to the reserved seat.

For more information, please refer to "Check-in behavior via Wi-Fi connection".



Setup Wi-Fi information for spots on Acall Portal

To use Wi-Fi Spot Check-in, Wi-Fi SSID and BSSID must be registered for the spot registered as a floor or area to determine the Wi-Fi to connect to.

💡 Note
Please register only the SSID or both the SSID and BSSID.
Registering only the BSSID does not allow Wi-Fi check-in.



Check Wi-Fi information (SSID / BSSID)

Check the SSID and BSSID you want to set for the spot.



(Windows) How to check the SSID and BSSID of the connection destination

Connect your PC to the Wi-Fi connection.

Launch a command prompt (or Power Shell).



Enter the following and press Enter.

netsh wlan show interfaces



SSID and BSSID will be displayed. Copy and paste them into a text tool.



Register Wi-Fi information to the spot

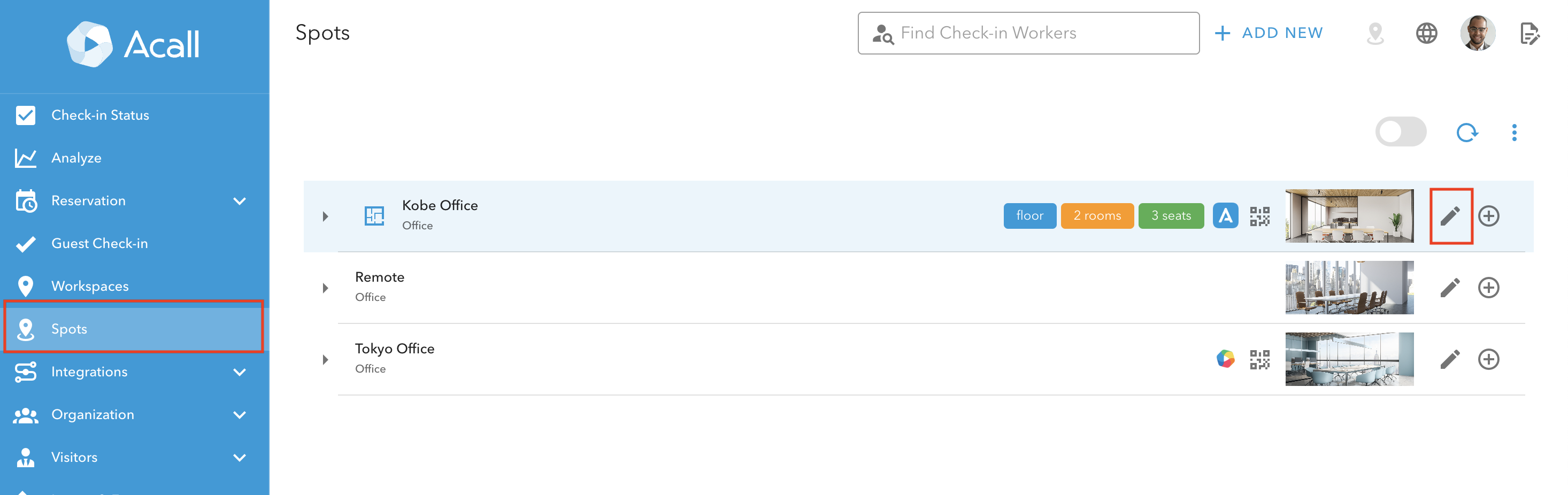

Click on [Spots] in the Acall Portal side menu and then click on the "Edit" icon for the spot.

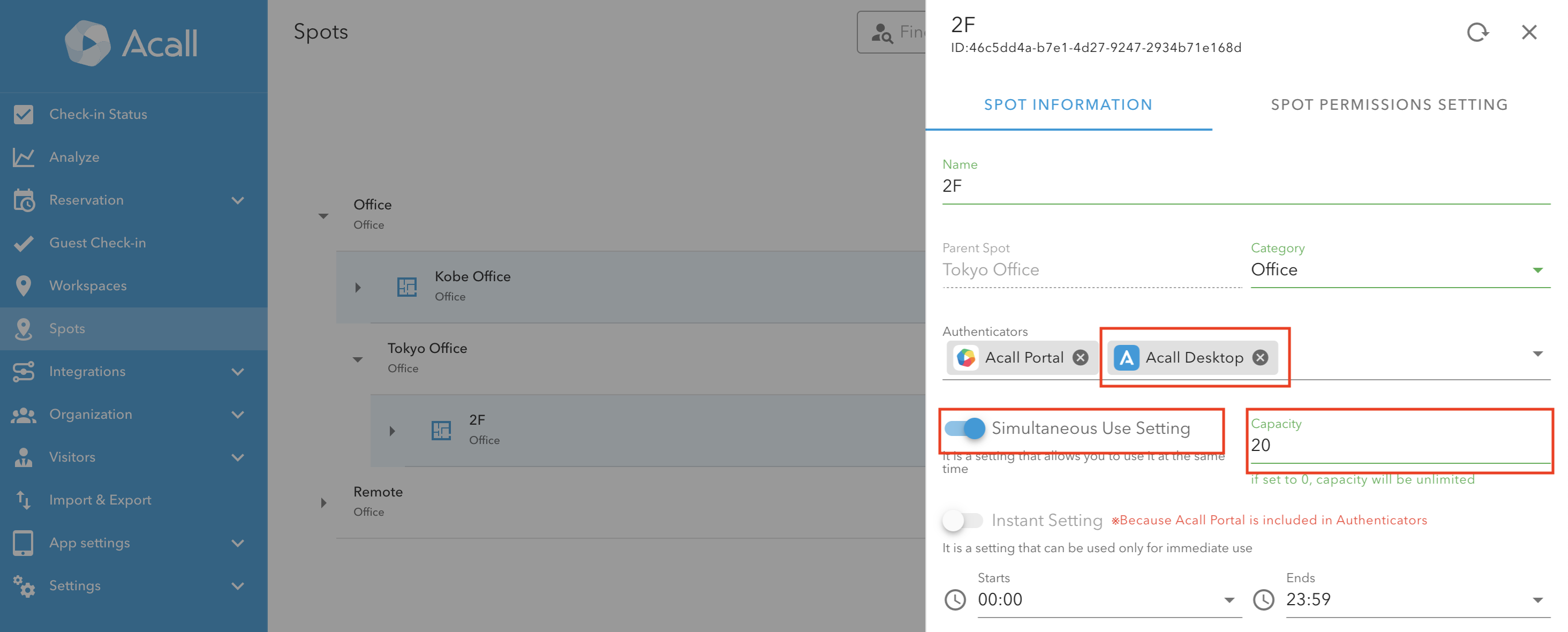

Make sure the following conditions are met in [SPOT INFORMATION] tab.

• "Acall Desktop" is be selected for Authenticators.
• "Simultaneous Use Setting" is ON.
• The number of Capacity is set to 0 (unlimited) or the number of people allowed to check-in for Wi-Fi at the same time.

⚠️
・ If the authenticators do not include "Acall Desktop", SSID / BSSID field will not appear.
・ When creating a new spot, SSID / BSSID field will not appear even if "Acall Desktop" is set as an authenticator. Please edit it after creating a spot.

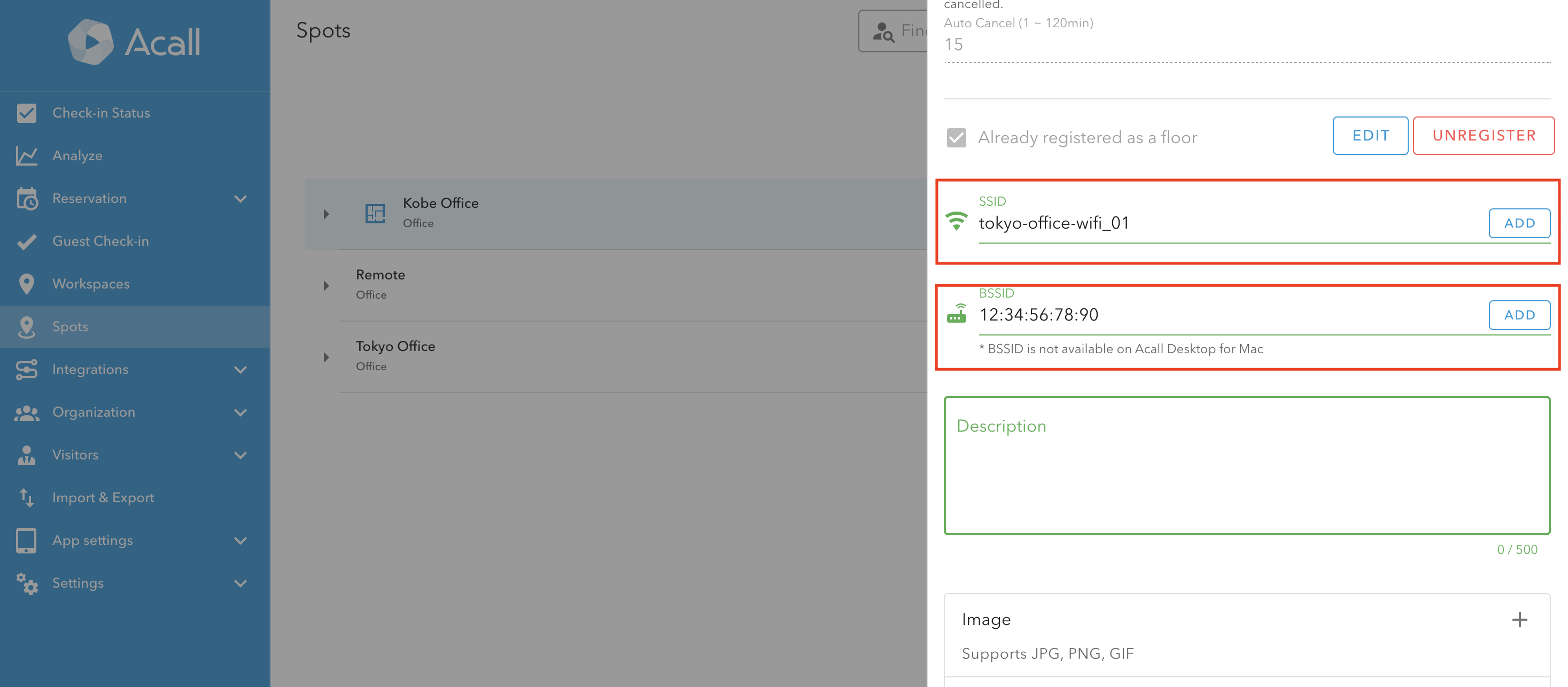

Enter SSID/BSSID and click [ADD].

Item	Format
SSID	Up to 32 characters
BSSID	Up to 17 characters ※ NN:NN:NN…

💡 Note
Please register only the SSID or both the SSID and BSSID.
Registering only the BSSID does not allow Wi-Fi check-in.

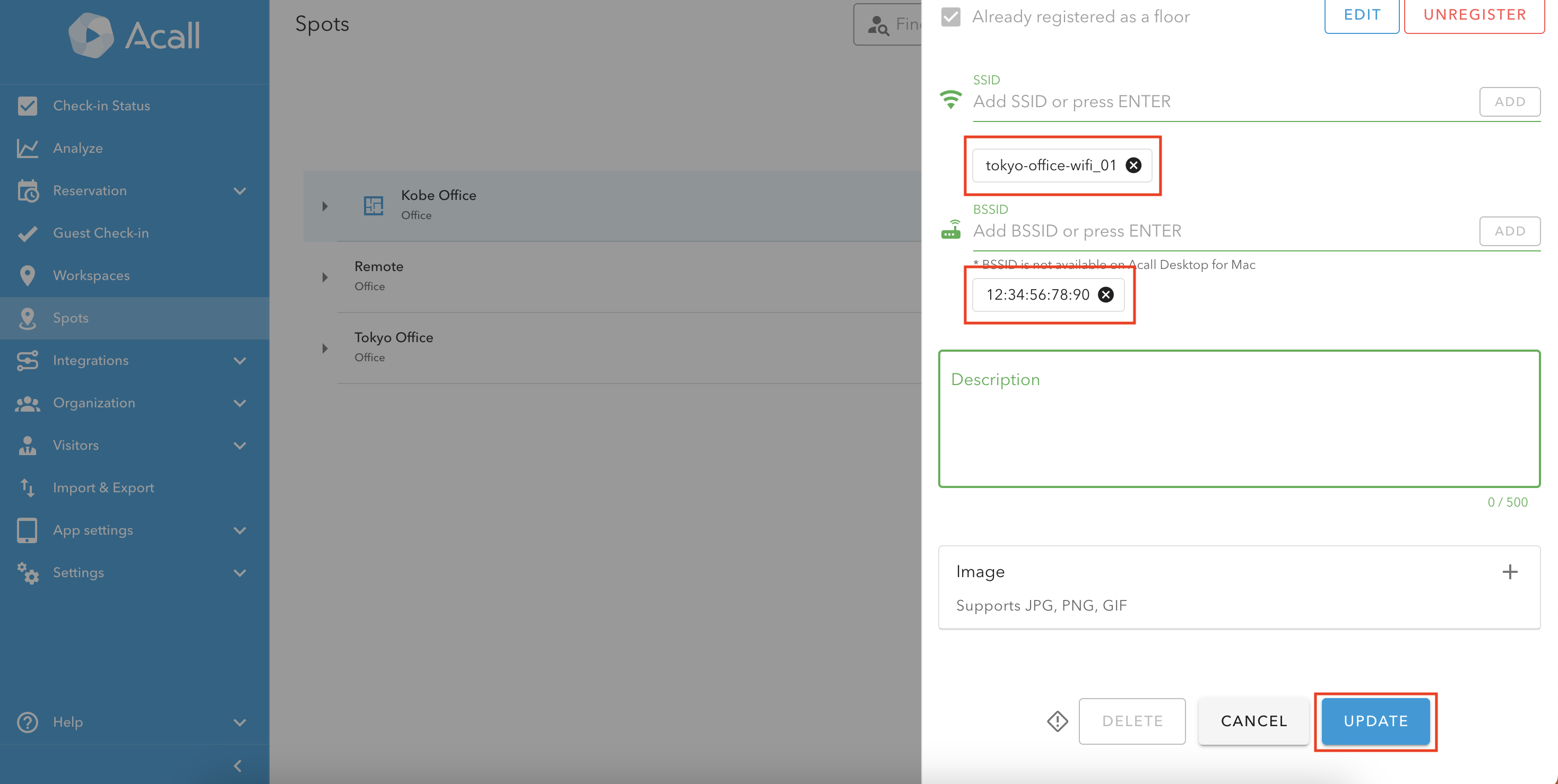

Click [UPDATE] to save.

💡 Note
Multiple SSIDs / BSSIDs can be registered for a single spot by repeating the process of entering the SSID / BSSID and clicking [ADD].

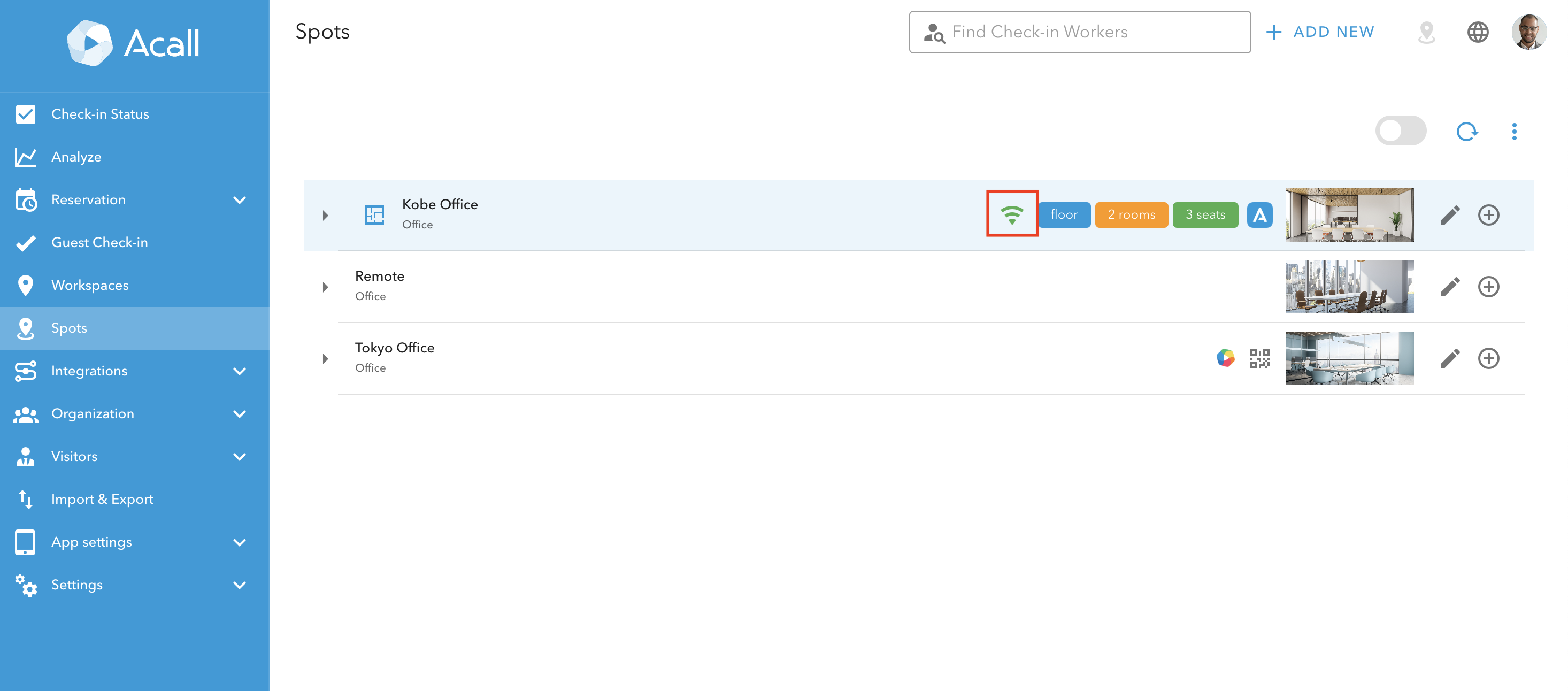

Once Wi-Fi information has been set up for a spot, Wi-Fi icon will appear on the spot list.



Edit / delete Wi-Fi information

You cannot edit the value of an already registered SSID/BSSID.

To edit a registered SSID/BSSID, delete the SSID/BSSID and then add a new one.



Click on [Spots] in the Acall Portal side menu and then click on the "Edit" icon for the spot.



Click [×] to delete the SSID / BSSID and click [UPDATE].
